LED NDIR carbon dioxide CO2 Sensor C20
C20
GSS
Product Description：

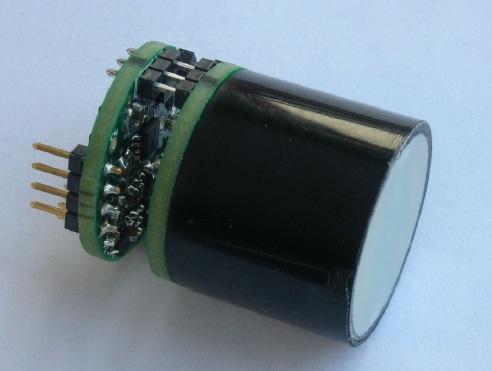

LED NDIR carbon dioxide CO2 Sensor C20
--miniature solid state LED NDIR CO2 Sensor
Apollo Technology Co., Ltd. specializes in infrared carbon dioxide sensor C20 / infrared CO2 sensor C20, welcome you to inquire the price C20 infrared carbon dioxide sensor (infrared CO2 sensor C20 price) and other details!
Dscription of carbon dioxide sensor C20:
An innovative High Speed, Real Time, Low Cost, Precision gas sensor using Al-In-Sb (Aluminium Indium Antimonde) NDIR LED technology. The base Mid IR solid state technology, developed by QinetiQ and licensed on a sole basis has been incorporated into an advanced CO2 sensor that is suitable for high volume manufacture and is targeted at a number of Carbon Dioxide Sensor applications.
This Carbon Dioxide sensor is a fast, low power NDIR sensor.
BENEFITS of carbon dioxide sensor C20:
1) four readings per second, high accuracy
2) easy to use: digital output, temperature compensated and linearised
3) low power: 100mW
4) solid state: no moving parts, no filaments
5) wide temperature range: -25℃ to + 55℃
6) useful range: 0-10%(higher available)
7) good immunity to other gases & humidity
8) various voltages available from 3.3v to 9v
9) 20mm package
APPLICATIONS of carbon dioxide sensor C20:
Modified atmospheres
Indoor air quality
Stowaway detection
Cellar & gas stores
Combustion control
Shipping containers
Atmospheric research
Greenhouses
More carbon dioxide sensors:

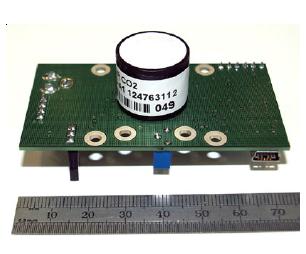

NDIR CO2 TRANSMITTER PCB IRC-TM
NDIR CO2 TRANSMITTER PCB IRC-TM 1) Both 4-20mA and USB output 2) Uses Alphasense IRC-A1 NDIR cell 3) Adjustable bulb voltage to optimise long-term stability vs. resolution 4) Optional gas hood available 5) Four ranges: 0-5,000ppm; 0-5% vol CO2; 0-20% vol CO2 ; 0-100% vol CO2 USB ...
Documentation：
Download
 |
CO2 OEM Module-6004 CO2 OEM Module-6004 three different measurement range for choicing,meet different needs perfectly! Telaire 6004 CO2 OEM Module Options The 6004 CO2 OEM module is available in many different options. The optional items include measurement method, measurement ... |
| Documentation： Download |
 |

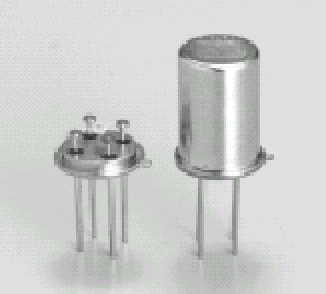

CO2 Carbon Dioxide sensor TGS 4161 CO2 Carbon Dioxide sensor TGS 4161 - for the detection of Carbon Dioxide Description of carbon sensor TGS4161: TGS4161 is a new solid electrolyte CO2 sensor which offers miniaturization and low power consumption. A range of 350~10,000ppm of carbon dioxide can be detected by TGS41... |
| Documentation： Download |
 |
CO2 Carbon Dioxide sensor TGS 4160 CO2 Carbon Dioxide sensor TGS 4160 - for the detection of Carbon Dioxide Description of carbon sensor TGS4160: TGS4160 is a new solid electrolyte CO2 sensor which offers miniaturization and low power consumption. A range of 300~5,000ppm of carbon dioxide can be detected by TGS416... |
| Documentation： Download |
 |
CO2 sensor module CO2-LC CO2 sensor module CO2-LC 1) accuracy: 2%FS 2) output: 4-20Ma 3) detection range: 0-100%(10%.30%) 4) response time: 10s 5) temperature range: 10-40℃ 6) size: 110x160x50mm ... |
| Documentation： Download |
 |
IRC-A1 CARBON DIOXIDE INFRARED SENSOR IRC-A1 CARBON DIOXIDE INFRARED SENSOR Range： 0-5000ppm 0-5%vol 0-20%vol 0-100%vol FS Resolution ： 15ppm 100ppm 500ppm 0.5%vol Accuracy ： 1%FS 1.5%FS 2.5%FS 4%FS Response time (t90) ： < 40s Temperature range： -20°C to +50°C Operating life： > 5年 Size ：Φ20.0×16.5mm ... |
| Documentation： Download |
 |

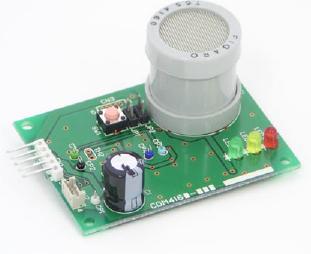

Pre-calibrated module for carbon dioxide CDM4160 Pre-calibrated module for carbon dioxide CDM4160 Specifications: range Detection： 400-4500ppm（CDM4160-L00）； 400-9000ppm（CDM4160-M00）； 400-45000ppm（CDM4160-H00） Accuracy：20% power consuption：13W Features: 1) High selectivity to CO2 2) Long life 3) Maintenance free 4) Pr... |
| Documentation： Download |
 |
Solid State Carbon Dioxide Sensor CO2-A1/B1 Solid State Carbon Dioxide Sensor CO2-A1/B1 Description: Operating as a gas ion selective electrode (ISE), the sensor has an easy interface, and is supplied in industry standard housings. Smaller housings, in our D Family size and as a 2025 button cell will become available. This... |
| Documentation： Download |
 |

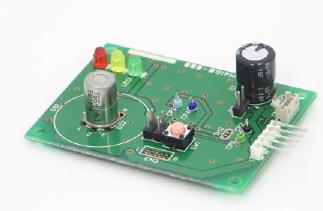

Pre-calibrated module for carbon dioxide CDM4161 Pre-calibrated module for carbon dioxide CDM4161 Specifications: Detection range： 400-4500ppm（CDM4161-L00）； 400-9000ppm（CDM4161-M00）； Accuracy：20% Power consumption：300mW Power supply：DC5.0±0.2V Features: 1) High selectivity to CO2 2) Maintenance free 3) Low power cons... |
| Documentation： Download |
 |

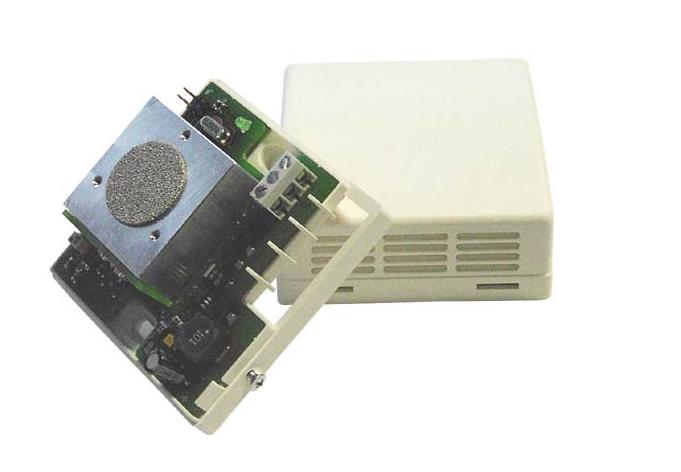

Air Quality Transmitter—AQ-Transmit Air Quality Transmitter—AQ-Transmit The AQ-Transmit determines with the help of a specific two-beam infrared photometer, the concentration of carbon dioxide in the air mixture at an ambient temperature of -10 to +50°C (measuring range 0-3,000 ppm). It is compact, robust, easy t... |
| Documentation： Download |
 |
Air quality monitor with Relays—AQ-Control Air quality monitor with Relays—AQ-ControlThe AQ-Control carbon dioxide measuring system is specially designed to monitor indoor air quality. With the aid of two independent relay contacts, it can control automatic window openers, air conditioning systems and fans. AQ-Control ... |
| Documentation： Download |
 |
Air Quality Interior Climate Monitor—AQ-Climate Air Quality Interior Climate Monitor—AQ-Climate The AQ-Climate Control is a network-compatible sensor system that measures important parameters of the interior climate: air quality by means of the carbon dioxide content, relative humidity and temperature. An integrated microproc... |
| Documentation： Download |
 |

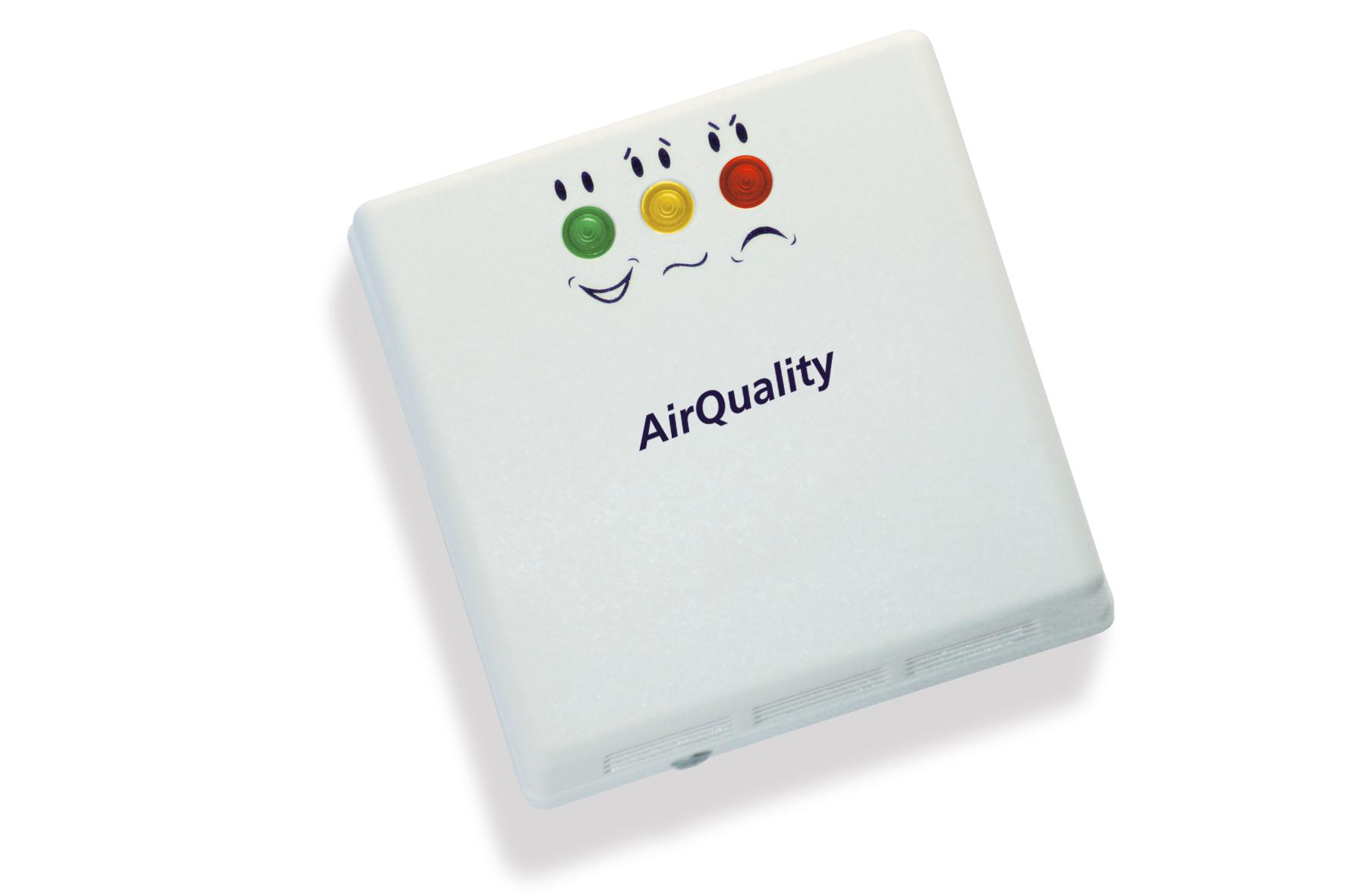

Air quality monitor—AQ-Alert Air quality monitor—AQ-Alert 1）A green light corresponds to a CO2 concentration of less than 1500 ppm: air quality is o.k. 2）A yellow light indicates 1500 to 2500 ppm CO2, and a short beep sounds: air is of low quality and ventilation is recommended. 3）A red light correspon... |
| Documentation： Download |
 |
CDM4161A -Pre-calibrated module for carbon dioxide CDM4161A - Pre-calibrated module for carbon dioxide Specifications: 1) detection range：400-4000ppm 2) accuracy：20% 3) power consuption：300mW 4) power supply：DC5.0±0.2V Features: 1) Ultra compact size 2) High selectivity to CO2 3) Maintenance free 4) Low power consumption 5) ... |
| Documentation： Download |
 |
LED NDIR carbon dioxide CO2 Sensor C20 LED NDIR carbon dioxide CO2 Sensor C20 --miniature solid state LED NDIR CO2 Sensor Dscription of carbon dioxide sensor C20: An innovative High Speed, Real Time, Low Cost, Precision gas sensor using Al-In-Sb (Aluminium Indium Antimonde) NDIR LED technology. The base Mid IR solid s... |
| Documentation： Download |
